Home › Bottles & jars › Pocket Perfume Bottle Filling Machine
Bottles & jars

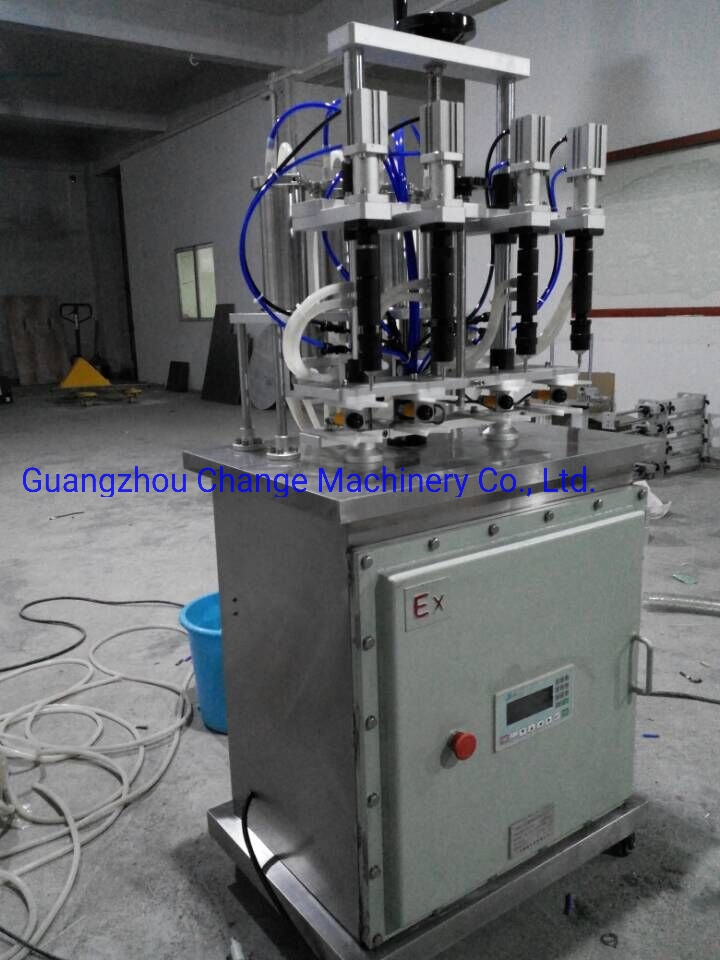

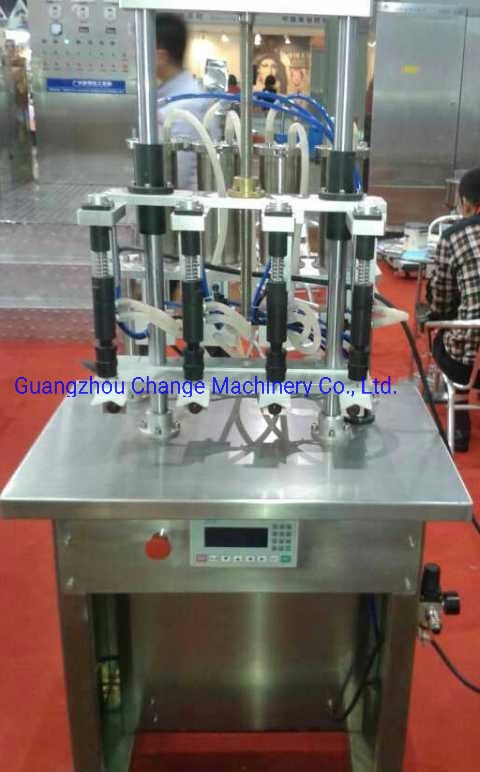

Pocket Perfume Bottle Filling Machine
US$1,700.00-3,800.00
Minimum order: 1 set
SupplierGuangzhou Change Machinery Co., Ltd.
LocationGuangzhou, Guangdong, China
Certification—
Factory addressNo.21, Dong Feng Avenue, Hua Du District, Guangzhou, Guangdong, China
Certifications—
Product Photos
Related sourcing guides
Product Details
Product Description
Introduction:
CHARACTERISTICS
1.This machine adopts imported parts, piston and cylinder which made of stainless steel and polytetrafluoroethylene. Excellent qualified imported components and perfect mechanical design ensure its leading position among domestic similar machine.
2.The new vertical design, light and easy to operate.
3.Switch function between manual and automatic: when machine is in "automation" condition, machine will fill continuously with set speed: when it is under "manual" condition, operator step on footplate to realize filling. If stepping footplate continuously, it will change to continuous filling condition. Cylinder and three-way parts use cuff connection which is easy to remove. It does not need any special tools so it is easy to clean.
4.Anti-leaking filling system: the closure head is moved when the cylinder moves up an down during filling. When the closure head down by cylinder, then valve will open and start to fill material; when it up by cylinder, valve will close and stop to fill and avoid leaking and wire drawing.
5.It can fill most of liquid, chemical, pharmaceutical, cosmetic, food and other industries.
TECHNICAL SPECIFICATIONS
CHARACTERISTICS
1.This machine adopts imported parts, piston and cylinder which made of stainless steel and polytetrafluoroethylene. Excellent qualified imported components and perfect mechanical design ensure its leading position among domestic similar machine.
2.The new vertical design, light and easy to operate.
3.Switch function between manual and automatic: when machine is in "automation" condition, machine will fill continuously with set speed: when it is under "manual" condition, operator step on footplate to realize filling. If stepping footplate continuously, it will change to continuous filling condition. Cylinder and three-way parts use cuff connection which is easy to remove. It does not need any special tools so it is easy to clean.
4.Anti-leaking filling system: the closure head is moved when the cylinder moves up an down during filling. When the closure head down by cylinder, then valve will open and start to fill material; when it up by cylinder, valve will close and stop to fill and avoid leaking and wire drawing.
5.It can fill most of liquid, chemical, pharmaceutical, cosmetic, food and other industries.
TECHNICAL SPECIFICATIONS
| Mode | CH-XP-4 |
| Air Pressure | > 0.7MPa |
| Pressure of Reducing Valve | 0.55-0.65MPa |
| Air Consumption | 0.3 m3/min |
| Capacity | 20-40 time/min |
| Filling Range | 5-1500ml |
| Precision | ±1% |
| Body Material | 316 stainless steel |
